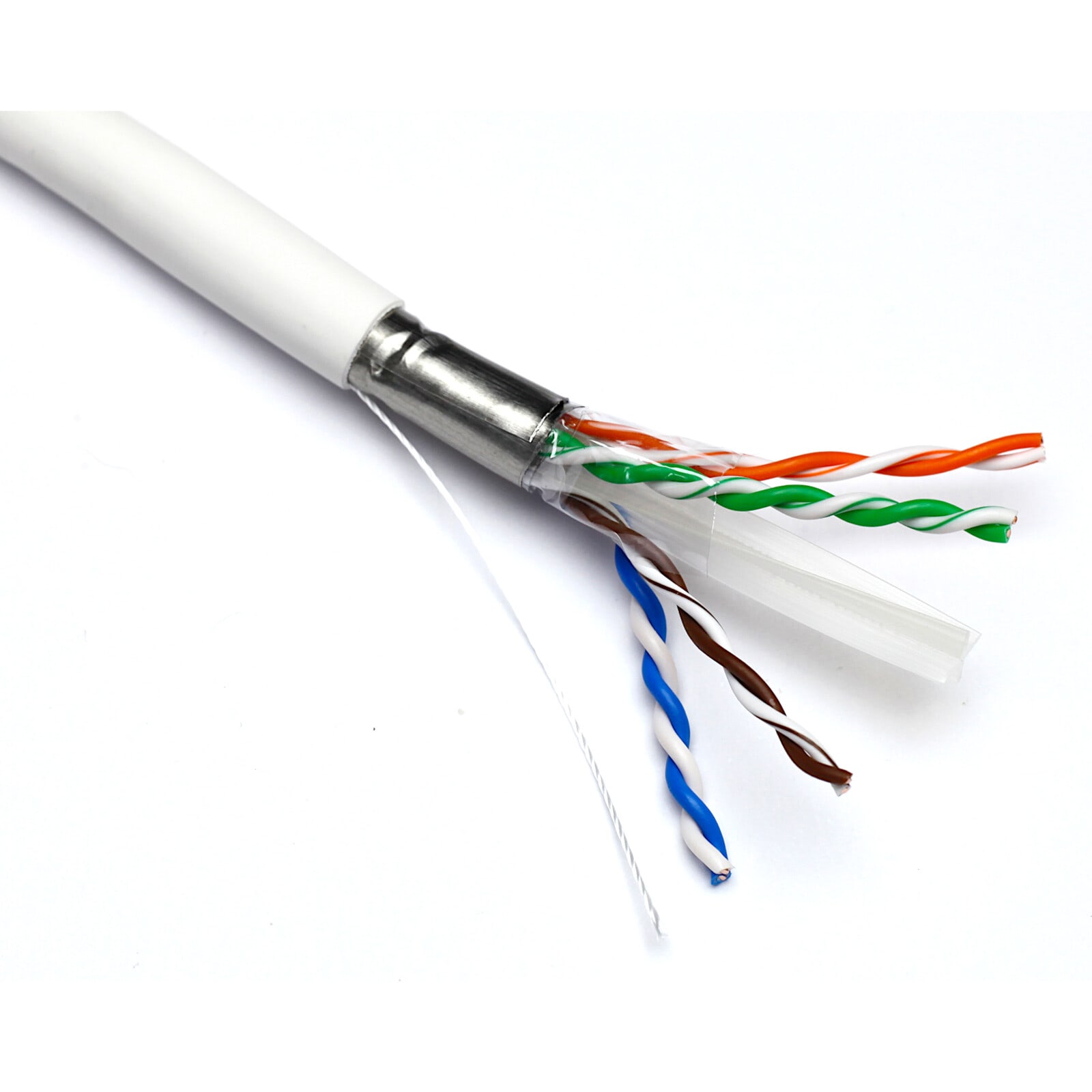

EXCEL - EXL100-219-WT Excel Cat6A Cable U/UTP LSOH 23A Dca 500

Excel solid Cat6A cable U/UTP 23AWG LSOH CPR Euroclass Dca designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards and supplied on 500 m reels. Excel Cat6A U/UTP Cable takes the performance capabilities of copper infrastructure tonew levels. This delivers Class EA/ Augmented Category 6 link performance over distances of up 90 metres which supports the applications including 10GBASE‐T, 10 Gigabit Ethernet. To keep ahead of the ever-increasing expansion of network infrastructureand the growing need to save space in existing containment, Excel Networking Solutions is pleased to introduce a new reduced-size Category 6A U/UTP cable, which features one of the smallest diameters available in the market today at 7 mm. A weight of 48 g per meter allows more cable to be placed in containment and reduces the overall floor weight of any installation. Its unique design overcomes the barriers of U/UTP when it comes to the CPR fire rating and performance. In smaller diameter cables, the use of a non-metallic but reflective barrier tape increases the performance of the cable and acts as a heat barrier, which reduces the combustibility of the cable giving a higher resilience to fire and decreasing the burn rate. - Cat6A solid copper cable - U/UTP no overall screening and no conductor screening - Outer non-conductive Tape for alien cross talk performance - Outer sheath colour: white - Reaction-to-fire class according to EN 13501-6: Dca - Smoke development class according to EN 13501-6: s2 - CIBSE TM65 Embodied Carbon: 206.559 kg CO2e
