EXCEL - EXL100-914 Excel Cat6A Cable S/FTP LSOH Dca 500 m R

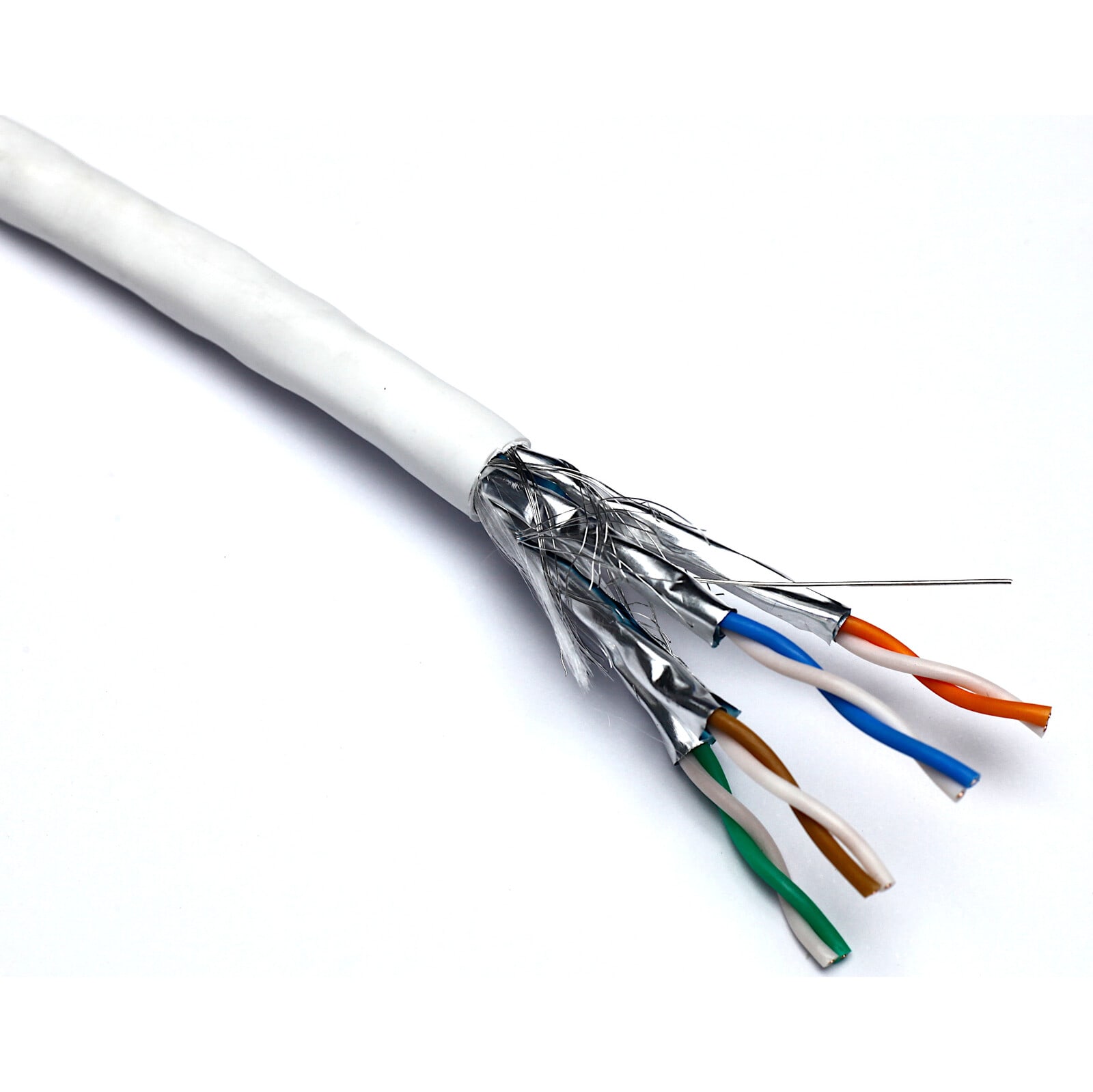

Excel screened Cat6A cable S/FTP LSOH with individual foil wrapped pairs and overall foil wrap and braided screening supplied on 500 m teel. Excel Cat6A fully screened (S/FTP) cable takes the performance capabilities of copper infrastructure to new levels. This delivers Class EA/Augmented Category 6 link performance over distances of up 90 m which supports the applications including 10GBASE‐T, 10 Gigabit Ethernet. Each cable consists of four pairs which are individually wrapped with a high quality, strong, aluminium/polyester foil tape providing screening for each pair. The individual pairs are set to different lay lengths to ensure optimum performance. These are then wrapped in another, overall foil and an overall braid screening. These cables are also suitable for PoE, PoE+ and PoE++ applications including type 3 and type 4, which enables delivery of 90 W over the four pairs. - Cat6A solid copper cable - S/FTP overall screening and foil screen per pair - Supports PoE++ Type 4 (90 W) - Outer sheath colour: White - Reaction-to-fire class according to EN 13501-6: Dca - Smoke development class according to EN 13501-6: s2 - CIBSE TM65 Embodied Carbon: 214.890 kg CO2e
