SCHNEIDER ELECTRIC - SNRLV481017 KIT CONNESSIONE 1M PER VIGIPACT B

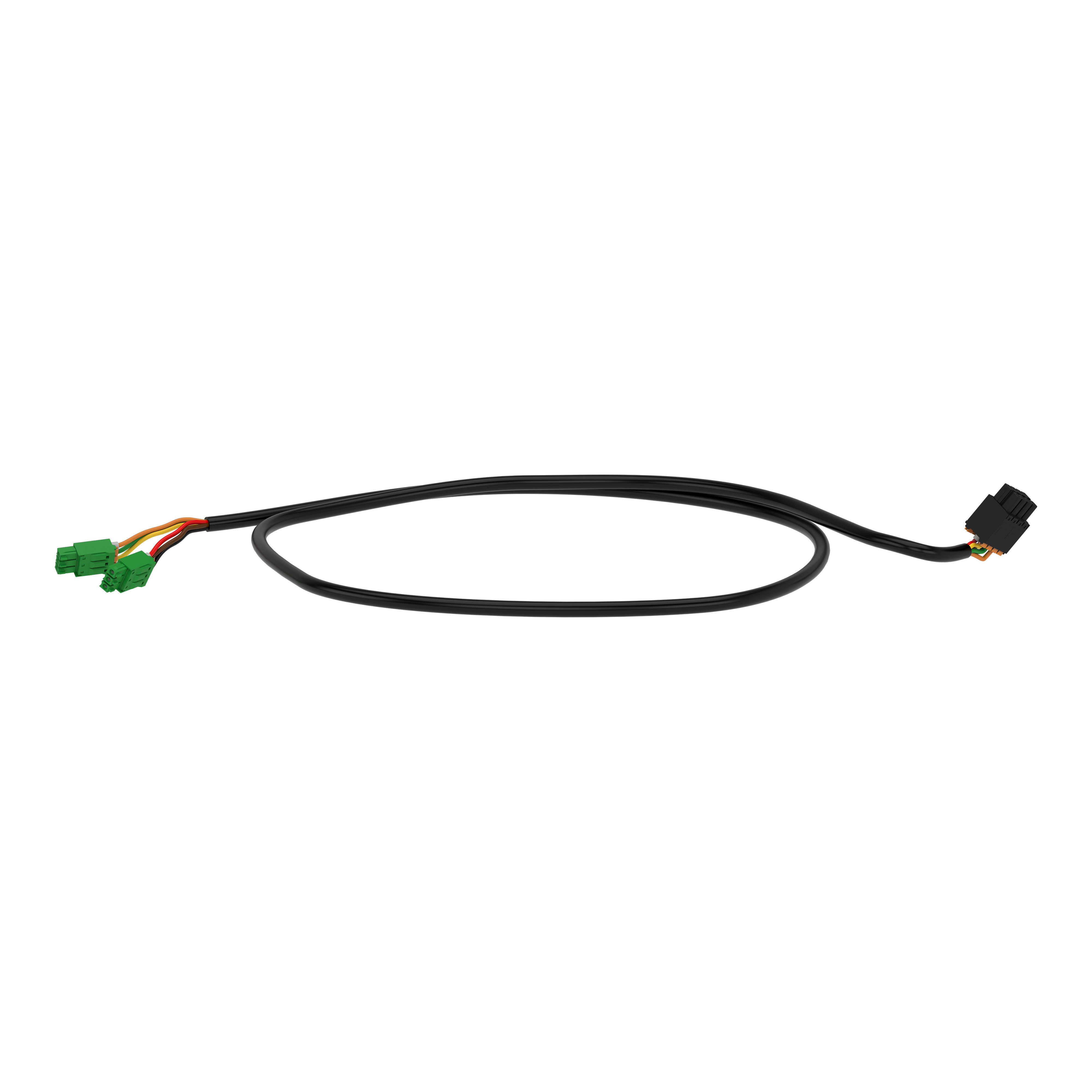

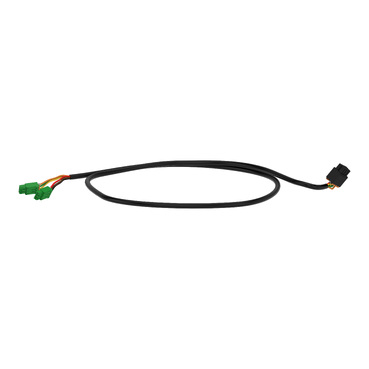

This product is a wiring kit for VigiPacT RHB toroid current sensors The wire length is 1m and connect the toroid to the RHB protection relay. VigiPacT RHB is a DIN rail mounting residual current protection and monitoring relay. It protects against people direct or indirect contact, property fire hazards and motors. It measures the earth leakage current in an electrical installation via its associated toroid. It trips the associated circuit breaker when the set residual operation current is overrun. It can activate an alarm and a pre-alarm. The operational supply voltage is 100/250VAC 50/400Hz or 100/250VDC. It is a type B earth-leakage protection class. The current sensitivity (IDn) is adjustable from 30mA to 3A on the keypad. The time delay (Dt) is adjustable on the keypad from instantaneous to 10s. The monitored distribution system voltage is up to 800VAC 50/60/400Hz. It is installed on a DIN-rail inside a switchboard and the protection degree is IP40. It must be associated with a compatible SchneiderElectric type B toroid.
