SCHNEIDER ELECTRIC - SNRLVSXDT624 PRISMASET XS RICAMBIO PORTA TRASP 6X24


Accedi per visualizzare prezzi e disponibilità
Caratteristiche principali
Modello - Porta per scomparto
Materiale - Vetro
Colore - Neutro
Porta a vetri - sì
Grado di protezione (IP) - IP40
Confezione
1 PZ
EAN
3606481073440
Codice prodotto
SNRLVSXDT624
Cod. produttore
LVSXDT624
Produttore
SNR
Modello:
Porta per scomparto
Materiale:
Vetro
Colore:
Neutro
Porta a vetri:
sì
Grado di protezione (IP):
IP40
Larghezza:
550 mm
Altezza:
1050 mm
Predisposta per sezionatore di intrerblocco:
no
Profondità:
20 mm
Versione EMC (compatibilità elettromagentica):
no

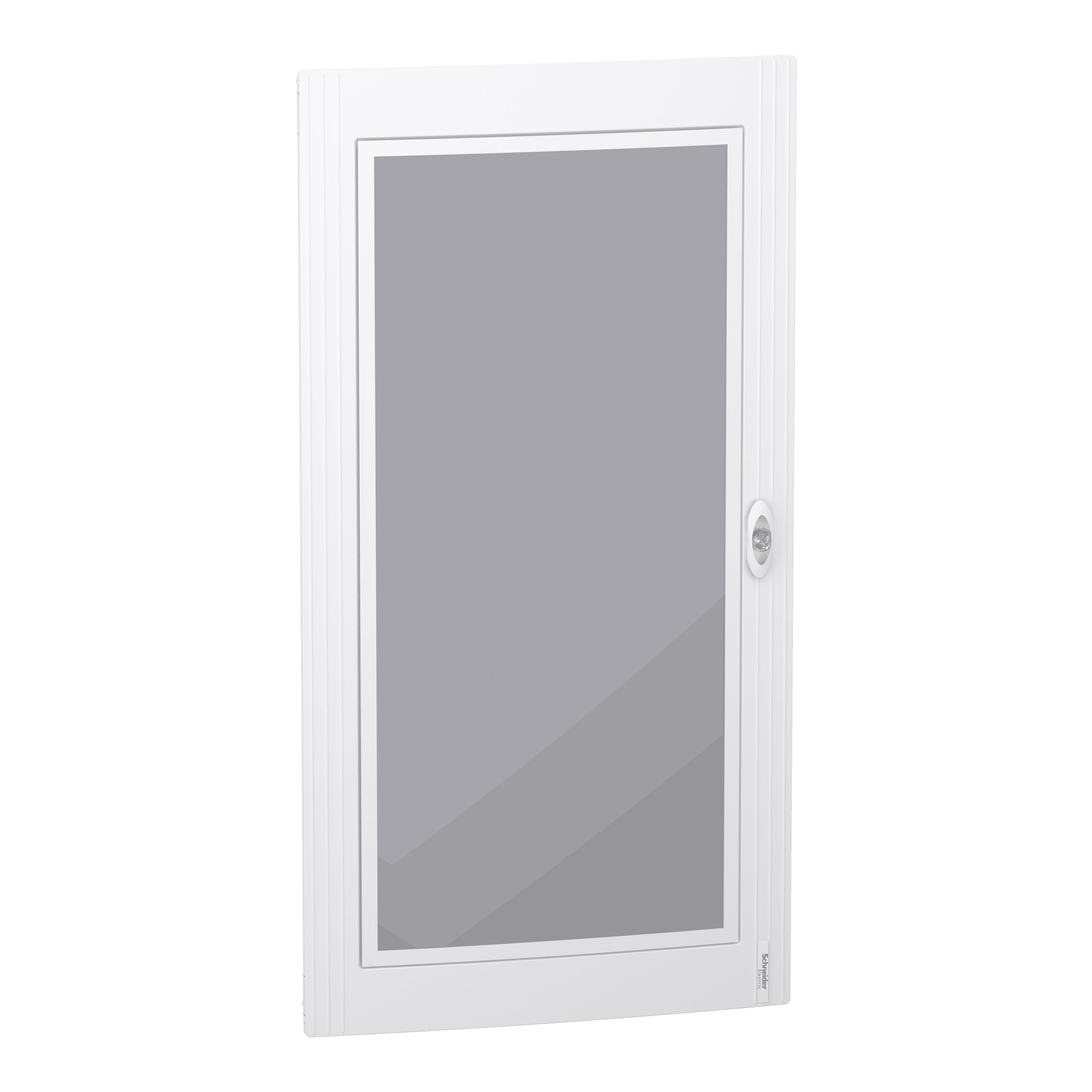

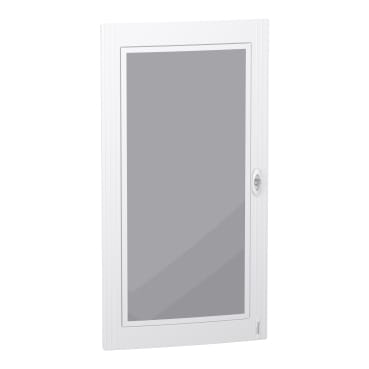

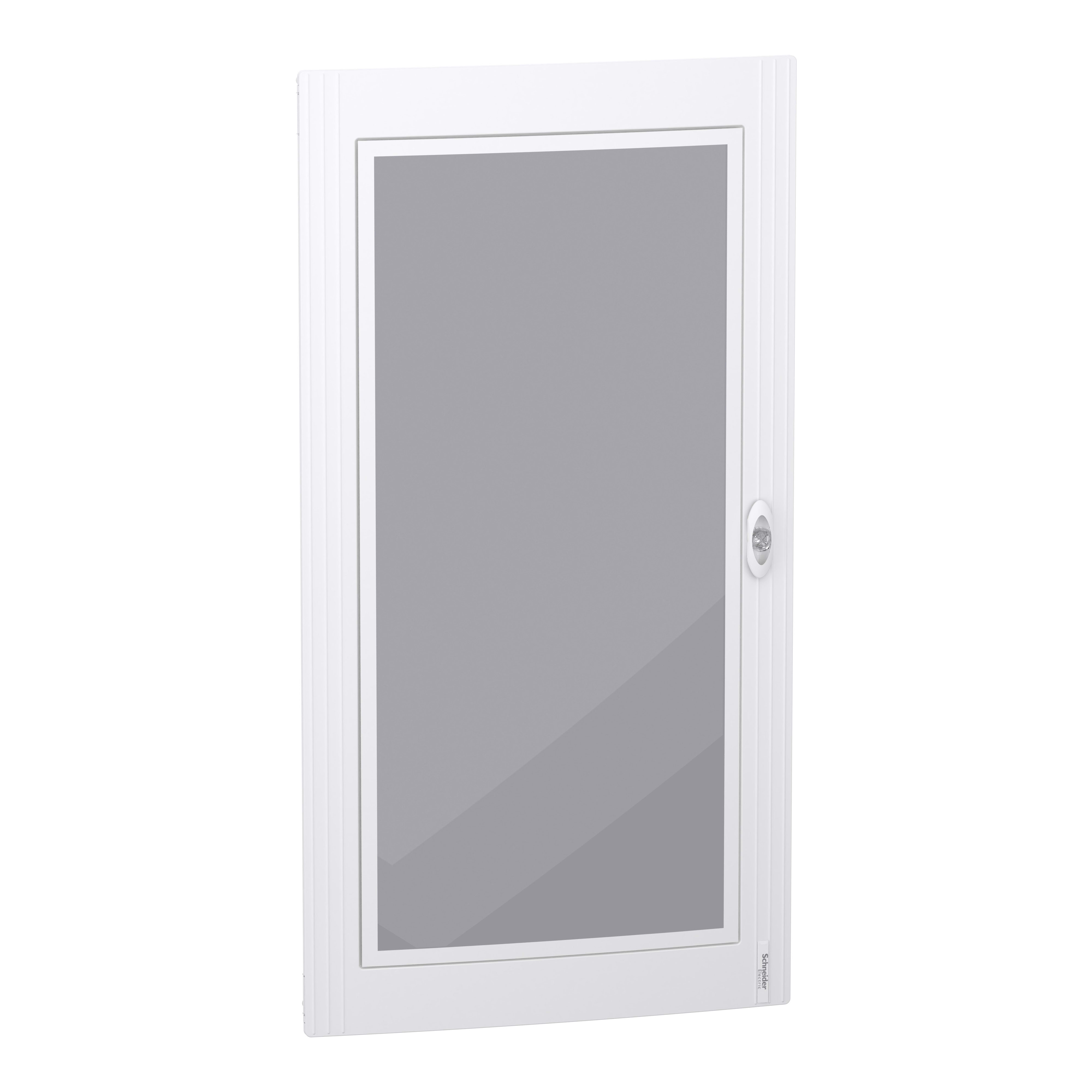

This PrismaSeT XS product is a transparent door for enclosure. It is designed to be compliant with an enclosure with 6 rows of 24 modules of 18mm. The IP degree of protection is IP40. The door is composed of an edge in steel with a colourless glass. The color of the edge is white (RAL 9003). It is intended for new or renovated installation in residential and small buildings. The door can be installed on flush or surface enclosure. it can be mounted and opened on the right or the left side of the enclosure. The identification number of the locking key has to be stated. The total dimensions are (W) 550mm x (H) 1050mm x (D) 20mm. Its weight is 6.760kg. The IK degree of protection is IK09. The operating temperature is -25°C to 60°C.
