EXCEL - EXL274-224 Excel Enbeam OM4 CST L/T 24C 50/125 LSOH

EXCEL
copiacopia

Accedi per visualizzare prezzi e disponibilità

Caratteristiche principali

  • Tipo di fibra - Multimode 50/125

  • Categoria - OM4

  • Numero di fibre - 24

  • Tipo di filo - Cavo a tubo allentato

  • Numero di fibre per ogni filo - 24

Confezione

  • 1 PZ

EAN

2000007443044

Codice prodotto

EXL274-224

Cod. produttore

274-224

Produttore

EXL

Tipo di fibra:

Multimode 50/125

Categoria:

OM4

Numero di fibre:

24

Tipo di filo:

Cavo a tubo allentato

Numero di fibre per ogni filo:

24

Con protezione contro i roditori:

Colore del rivestimento:

Blu

Classe di reazione al fuoco secondo EN 13501-6:

Cca

Reazione al fuoco secondo la norma EN 13501-6: Produzione di fumo:

S1a

Reazione al fuoco secondo la norma EN 13501-6: Gocce/particelle infuocate:

D0

Classe di corrosività secondo EN 13501-6:

a1

Diametro esterno circa:

8.5 mm

Ritardante di fiamma secondo IEC 60332-1-2:

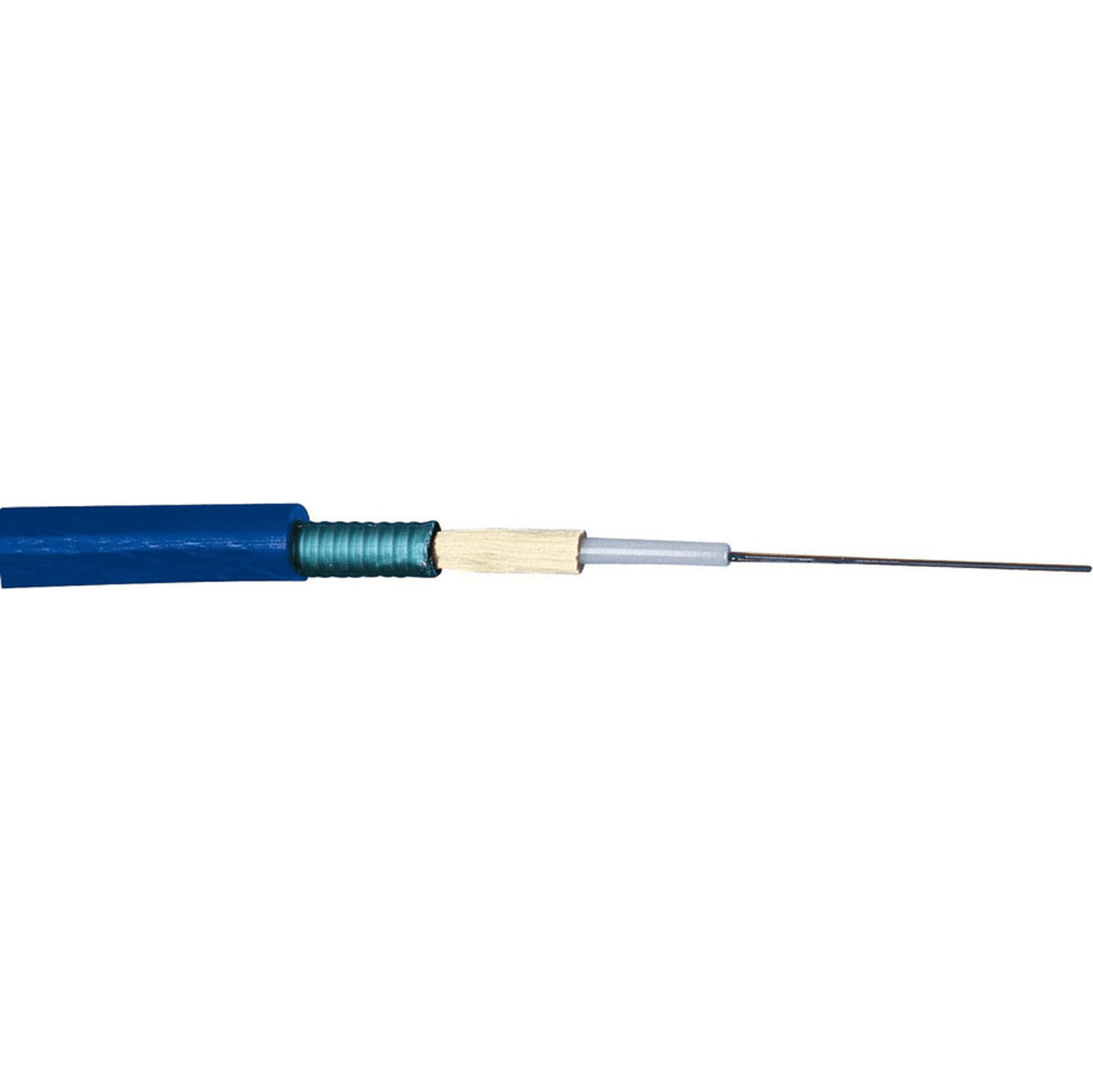

Enbeam OM4 Multimode CST Armoured Fibre Optic Cable Loose Tube 24 Core 50/125 LSOH Cca Blue, part of a huge range of OM4 fibre optic cables fully stocked at Mayflex. Excel corrugated steel tape (CST) OM4 50/125 μm armoured loose tube optical fibre cables have been designed specifically for applications requiring a high degree of mechanical protection. These compact, lightweight cables are extremely rugged, provide rodent resistance and are quick and easy to install. The cables are constructed around a silica gel filled tube(s) containing up to 24 colour coded 250μm buffered fibres, which is covered with E‐glass strength members. The CST cable has also been designed for direct burial, to ensure the correct installation a sand back fill must be used at all times. - Water resistant & UV resistant - Duct grade ‐ rodent resistant - Sequentially metre marked - Cut to length service - Euroclass Cca-s1a-d0-a1 - 25 Year system warranty - CIBSE TM65 Embodied Carbon: 0.707 kg CO2e
